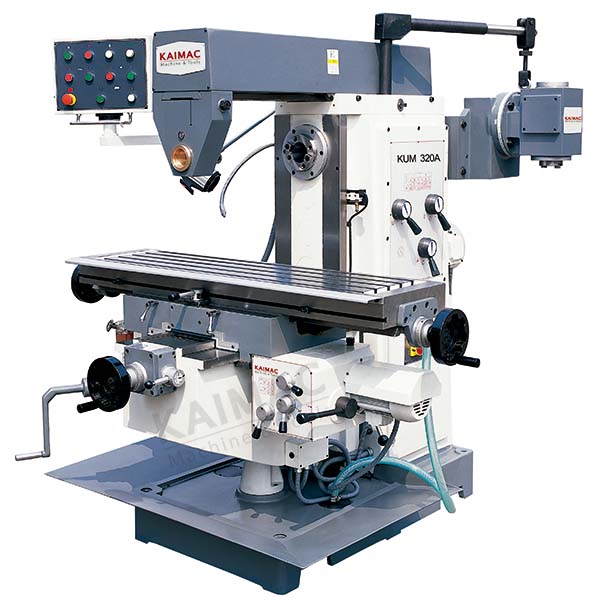

KUM 320A

UNIVERSAL MILLING MACHINE­­

FEATURES:

n With vertical milling head

n Control panel swivels for comfortable operation

n Table power feed on X and Y axis

n Positioning motor on Z axis

n Central lubrication

n Equipped with coolant and work lamp




SPECIFICATIONS

Model No.

KUM 320A

Work table size

1320x320 mm

T-slot

14mm / 5 no.

Max. table load capacity

300 kgs

Table longitudinal travel (X-axis)

800(manual) / 750(auto) mm

Table cross travel (Y-axis)

300 mm

Table vertical travel (Z-axis)

400 mm

Spindle taper

ISO50 (horizontal spindle)

ISO40 (vertical milling head)

Spindle speed

58-1800 rpm (12 steps)

Vertical spindle to column

320 mm

Vertical spindle to table surface

0-341mm

Horizontal spindle to table surface

0-400mm

Table feed longitudinal/cross (X/Y-axis)

20-360 mm/min (8 steps)

Table feed vertical (Z-axis)

400 mm/min

Table rapid feed longitudinal/cross (X/Y-axis)

1200 mm/min

Coolant motor power

90 W

Main motor power

4 kw

Overall dimension

1900x1720x1750 mm

Net weight

2100 kgs



Standard Accessories

Milling chuck set (8pcs/set)

Horizontal milling arbor Ф27, Ф32

Draw bar

Coolant device



Optional Accessories

Digital readout (DRO)

58pcs clamping kit set

Universal dividing head

Rotary table
